USB Digital Biological Trinocular Microscope with Camera
► Video biological microscope specification
Digital biological trinocular microscope can add 5MP ,3MP,12MP digital microscope camera.The video biological microscope are often used to analysis the sample through a imaging process software.The microscope camera can connect with a computer by a USB cable.
► Video biological microscope details

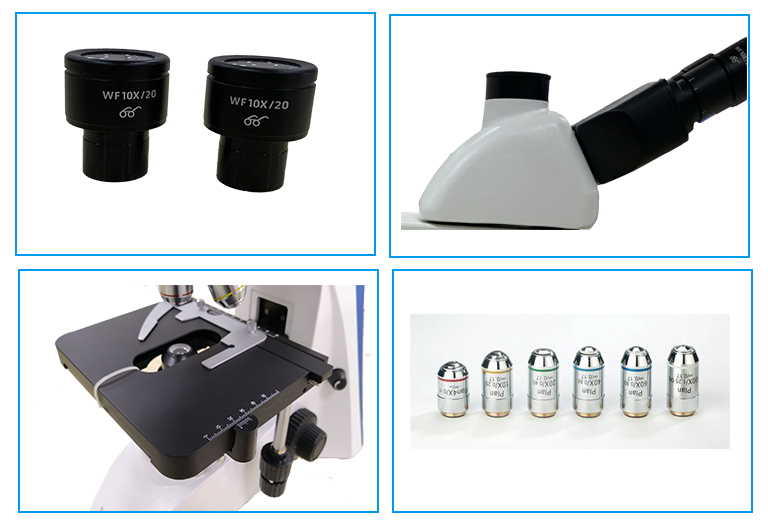

♦ Trinocular viewing tube,can add a microscope camera freely
♦ Two kinds of light splitting ratio: 100:0 or 80:20
♦ Large diameter 5 holes backward rotatable nosepiece
♦ Infinity optical system,with 5 high resolution microscopce Plan objective lenses
♦ 3W LED cold light source or 12V 20W halogen lamp is available
♦ Field diaphragm ,centering adjustable ,wide voltage 100V~240V,Koehler illumination
♦ Digital microscope camera with USB cable and imaging process software,apply for Windows system
► Video biological microscope outfits
| Model | Outfits |
| Eyepiece | WF10×／20mm (23.2mm) | ●● |
| Infinity Plan Objectives | 4×／0.10 | ● |
| 10×／0.25 | ● |
| 20×／0.40(S) | ● |
| 40×／0.66(S) | ● |
| 100×／1.25(S, Oil) | ● |
| Seidentopf Trinocular Head | Inclined 30°,Rotatable 360°,Adjusting Interpupilary Distance:48mm-75mm, Light Distribution: 100: 0 / 80:20 | ● |
| Nosepiece | 5 holes | ● |
| Mechanical Working Stage | Size: 175mm×145mm,Travel: 78mm×55mm
Coaxial Coarse and Fine Focusing Knobs
Two Slide Holder | ● |
| Condenser | Abbe N.A. 1.25 , iris diaphragm. | ● |
| Koehler Illumination | 12V/20W Halogen Lamp | ○ |
| 3W-LED Illumination | ● |
| Wide voltage input: 100V～240V | ● |
| Field diaphragm , centering adjustment | ● |
| Microscope Filter | Blue filter diameter:45mm | ● |
| C-mount | 0.5× C-mount (focus adjustable) | ○ |
